ControllerDataGrid<DataItemClass> Class

Inheritance Hierarchy
System.Object
  SOWIWin.Helper.PageDataGrid<DataItemClass>
    SOWIWin.Helper.ControllerDataGrid<DataItemClass>

Namespace:  SOWIWin.Helper
Assembly:  SOWIWin.Helper (in SOWIWin.Helper.dll) Version: 19.1.23.1 (19.1.23.622)
Syntax
public abstract class ControllerDataGrid<DataItemClass> : PageDataGrid<DataItemClass>,
	IControllerDataGrid

Type Parameters

DataItemClass
data item class based of IDataStandard

The ControllerDataGrid<DataItemClass> type exposes the following members.

Constructors
Properties
Methods
  NameDescription
Public methodCopy
Copy the selected data item to his data grid
(Inherited from PageDataGrid<DataItemClass>.)
Private methodCopyItem
Copies a object 1:1
(Inherited from PageDataGrid<DataItemClass>.)
Public methodCode exampleCopyToClipboard()
Copy the selected data items to clipboard
(Inherited from PageDataGrid<DataItemClass>.)
Public methodCopyToClipboard(IList)
Copy data items to clipboard
(Inherited from PageDataGrid<DataItemClass>.)
Public methodDataRefresh
Refresh user interface data table view
(Inherited from PageDataGrid<DataItemClass>.)
Public methodEquals
Determines whether the specified Object is equal to the current Object.
(Inherited from Object.)
Protected methodFinalize
Allows an object to try to free resources and perform other cleanup operations before it is reclaimed by garbage collection.
(Inherited from Object.)
Public methodGetColumnIndexByName
Give column index by column name
(Inherited from PageDataGrid<DataItemClass>.)
Public methodGetHashCode
Serves as a hash function for a particular type.
(Inherited from Object.)
Public methodGetType
Gets the Type of the current instance.
(Inherited from Object.)
Public methodCode exampleInsertFromClipboard
Insert data items from clipboard
(Inherited from PageDataGrid<DataItemClass>.)
Public methodCode exampleLoad
Load all data items with object AppModule method GetAll
Protected methodMemberwiseClone
Creates a shallow copy of the current Object.
(Inherited from Object.)
Protected methodCode exampleOnCollectionChanged
Data items changed handling
(Inherited from PageDataGrid<DataItemClass>.)
Protected methodCode exampleOnCopy
Event copy from object DataGrid (DataGridMain)
(Inherited from PageDataGrid<DataItemClass>.)
Protected methodOnCopyToClipboard
Called method CopyToClipboard(IList). Can be overridden.
(Inherited from PageDataGrid<DataItemClass>.)
Private methodOnPaste
Insrt from clipboard
(Inherited from PageDataGrid<DataItemClass>.)
Protected methodOnRemove
Data item remove of datagrid
(Inherited from PageDataGrid<DataItemClass>.)
Protected methodCode exampleOnSetColumn
Puts column with a selection list (ComboBox object, when exist a ListName)
(Inherited from PageDataGrid<DataItemClass>.)
Protected methodCode exampleOnSetColumnsDisplayIndex
Set columns display order (index)
(Inherited from PageDataGrid<DataItemClass>.)
Protected methodCode exampleOnSetColumnsReadOnly
Set column field edit or read only
(Inherited from PageDataGrid<DataItemClass>.)
Protected methodCode exampleOnSetColumnsVisibility
Set columns visibility.
(Inherited from PageDataGrid<DataItemClass>.)
Public methodSetData
Set data to DataItems and PageDataGridUI.DataGridMain.DataContext
(Inherited from PageDataGrid<DataItemClass>.)
Public methodCode exampleSetViewBag
Puts values of objects:
NameDescription
DataGridViewPuts Data Grid View from object PageDataGrid
TempDataPuts data list for selection
Public methodCode exampleToCopy
Copy a data item. Put properties: ID 0, Action Create, Status Create and empty GUID
(Inherited from PageDataGrid<DataItemClass>.)
Public methodToString
Returns a string that represents the current object.
(Inherited from Object.)
Public methodCode exampleUpdate
Data items was changed update to database.
Public methodCode exampleValidate
Data items validation with AppModule method Validate. Is data item not valid then show a message on desktop.
Top
Fields
Extension Methods
  NameDescription
Public Extension MethodGetObjectToBytes
Convert an object to byte array
(Defined by Extensions.)
Public Extension MethodIsNumber
Check is value a number
(Defined by Convert.)
Public Extension MethodToHTMLDisplay(DataGrid, TempDataDictionary)Overloaded. (Defined by Extensions.)
Public Extension MethodCode exampleToHTMLDisplay(String, DataGridDataTypes, String, String, String, String, TempDataDictionary)Overloaded.
Gives HTML code for display.
(Defined by Extensions.)
Public Extension MethodToHTMLEditor(DataGrid, TempDataDictionary, String)Overloaded. (Defined by Extensions.)
Public Extension MethodToHTMLEditor(String, DataGridDataTypes, String, String, String, TempDataDictionary, Boolean, String, DataPlacements, String, String)Overloaded.
Gives HTML code for Input field
(Defined by Extensions.)
Public Extension MethodCode exampleToHTMLHidden(String)Overloaded.
Gives HTML code for hidden data
(Defined by Extensions.)
Public Extension MethodToHTMLHidden(DataGrid)Overloaded.
Gives HTML code for hidden data
(Defined by Extensions.)
Public Extension MethodXMLWrite
Gives XML string from data item
(Defined by Helper.)
Top
Remarks
Note Note
Syntax controller name: [name]Controller

Suffix Controller e.g. TicketController

This controller has two main elements:

The AppModule object is data handling and must elments (methods, properties) from interface IAppController<DataItemClass>

The PageDataGrid<DataItemClass> is user interface

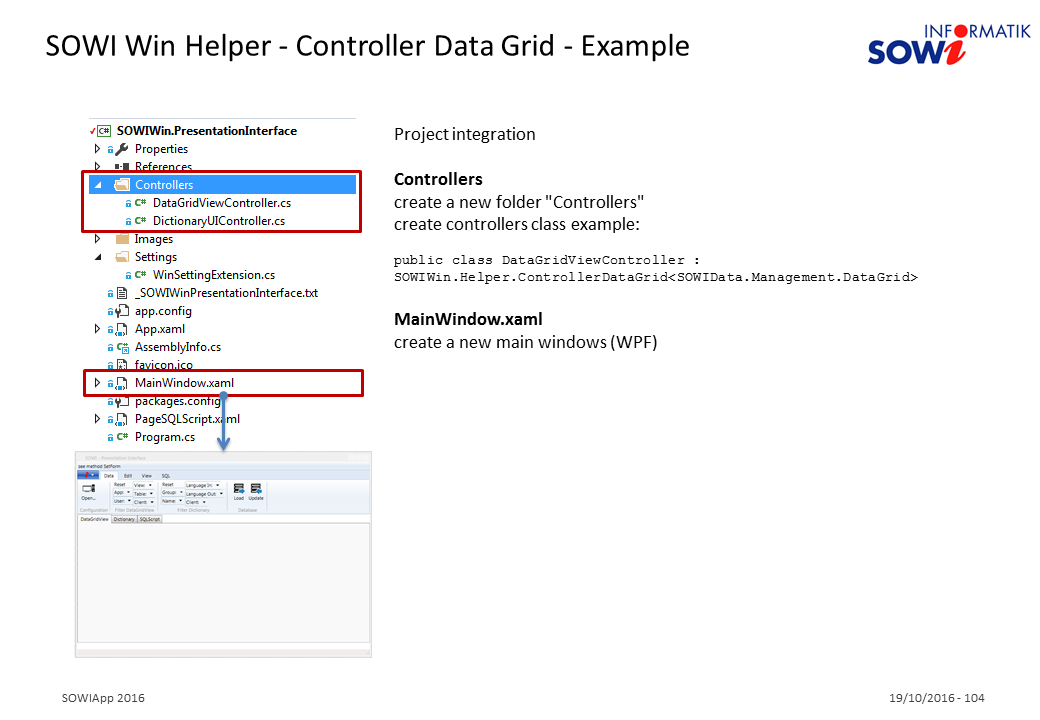

Class overview

Requirement

Assembly references: PresentationCore, PresentationFramework, WindowsBase
Examples

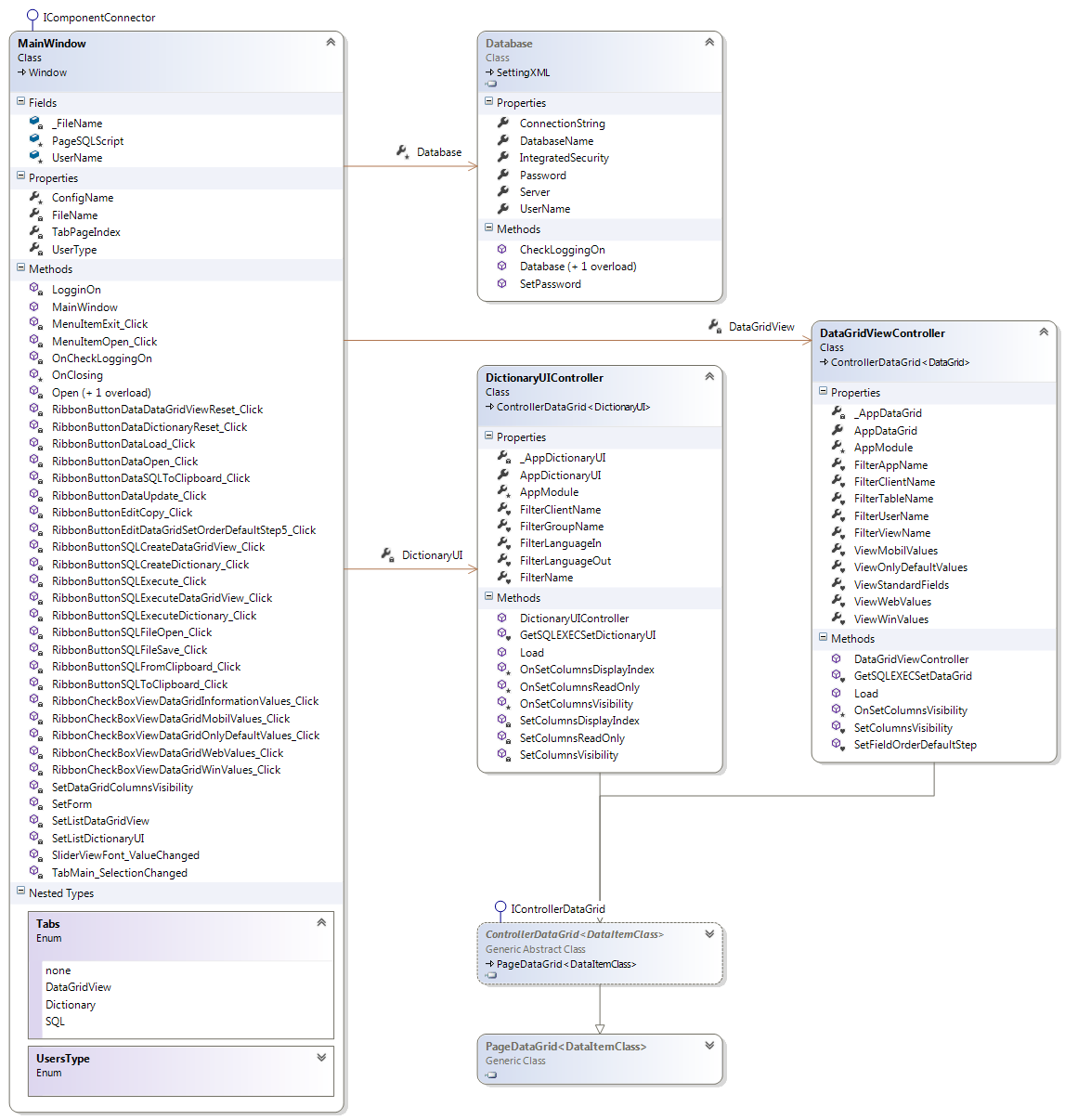

Class overview

Constructor MainWindow

public MainWindow()
{
    InitializeComponent();
    this.FrameDataGridView.Content = null;
    this.FrameDictionary.Content = null;
    SetForm();
}

Method SetForm

private void SetForm()
{
    this.DataGridView = null;
    this.DictionaryUI = null;
    if(true)
    {
        this.DataGridView = new Controllers.DataGridViewController(this.Database.ConnectionString, this.UserName);
        this.FrameDataGridView.Content = this.DataGridView.PageDataGridUI;
        this.DictionaryUI = new Controllers.DictionaryUIController(this.Database.ConnectionString, this.UserName);
        this.FrameDictionary.Content = this.DictionaryUI.PageDataGridUI;
    }
}

Method Load

Can called by event RibbonButtonDataLoad_Click
private void Load()
{
    this.FrameDataGridView.Content = DataGridView.Load();
    this.FrameDictionary.Content = DictionaryUI.Load();
}

Method Update

Can called by event RibbonButtonDataUpdate_Click.

This example update all data grids.

private void Update()
{
    DataGridView.Update();
    DictionaryUI.Update();
}
This code example update the selection data grid.
switch (TabPageIndex)
{
    case Tabs.none:
        break;
    case Tabs.DataGridView:
        DataGridView.Update();
        break;
    case Tabs.Dictionary:
        DictionaryUI.Update();
        break;
    case Tabs.SQL:
        break;
    default:
        break;
}
See Also
